Pro4 CAN Display Logger

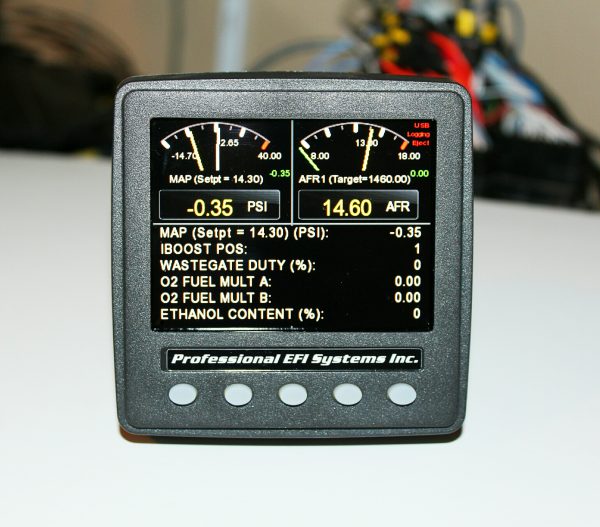

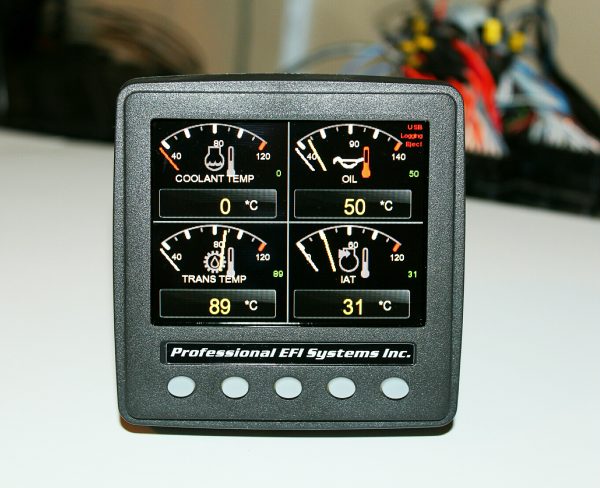

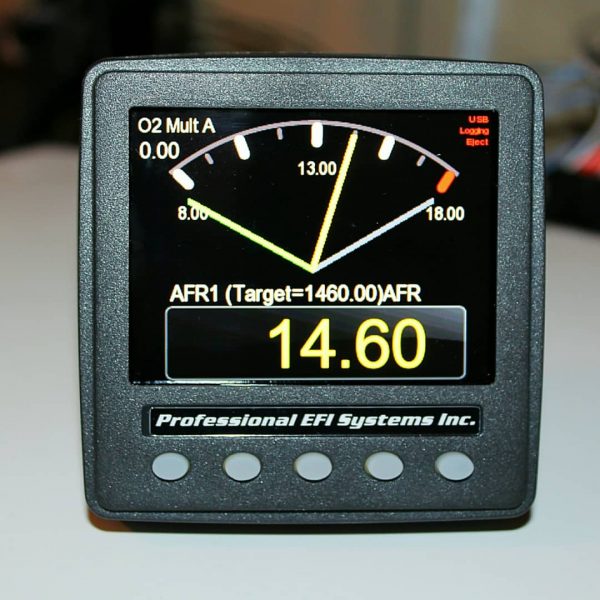

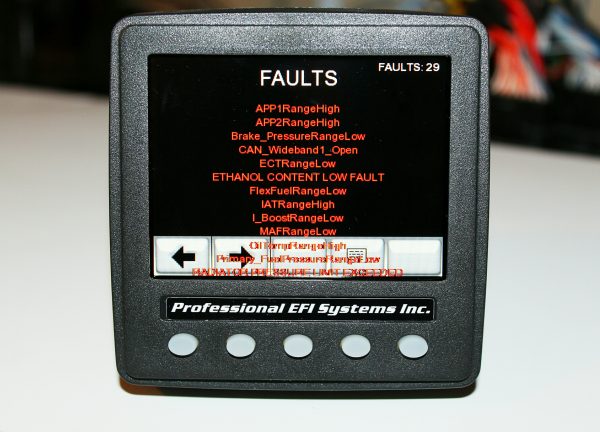

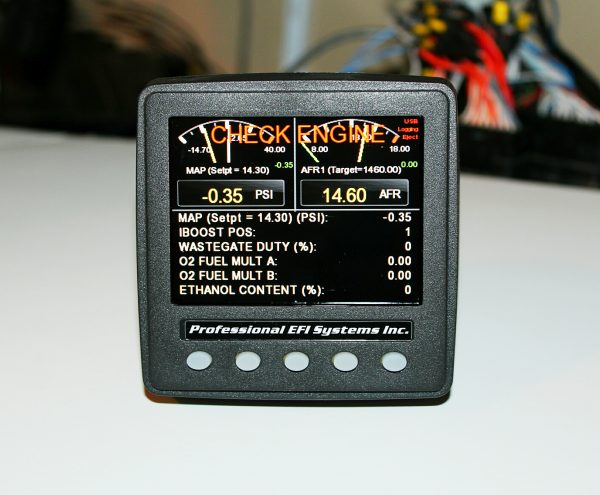

The ProEFI Display Logger allows the user to monitor over 30 channels through a 4″ color screen. Which can display up to 4 gauges at one time, with peak and hold min and max values. There is also Knock screen and a Fault screen.  Users are also able to change the layout and have multiple user modes to give it a more personal touch. User defined units are selectable as well. This display also logs to a fat32 formatted USB stick, ALL available CAN channels with logging triggered from the ECU software setup. Never miss any data again!

** If your Display only has 1 Aux port on the back, you have a Non-Logger Display

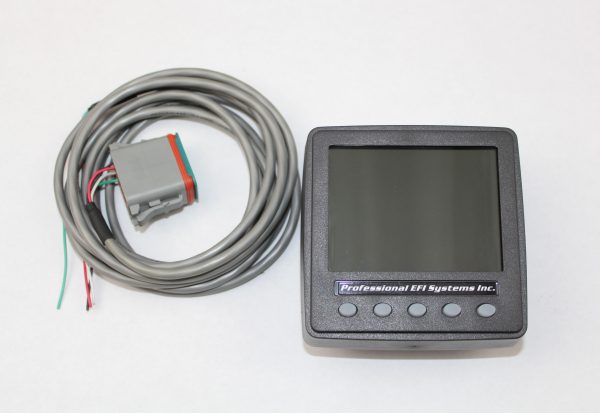

Kit Includes-
  •  CAN Display Logger
  • Cable Assembly


SKU: 9404 Category:


CAN Display Logger Features-

Air/Fuel Ratio 1 & 2
Ethanol Content Percent
Target AFR
Lambda 1 & 2
O2 Feedback Multipliers (Fuel Trims)
Instant Fuel Economy
Primary Injector Duty
Primary Fuel Pressure
Manifold Pressure

Manifold Pressure
Pressure Ratio
Fuel Pressure
WasteGate Set point (Target Boost)

WasteGate Duty Cycle
I-Boost Mode
Exhaust Back-pressure
Spark Advance
System Voltage (Battery Volts)
Coolant Temperature

Inlet Air Temperature
Radiator Pressure
Oil Pressure
Oil Temperature
Trans Pressure
Nitrous Bottle Pressure
Differential Wheel Speed
Non Driven Wheel Speed
Current Rev Limit Set point**And Many More Channels**


WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Professional EFI Systems Inc. product.


In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Professional EFI Systems Inc. products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Professional EFI Systems Inc. products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists. (more information can be found on for state by state details in the USA)
